KdFi stand-alone EMS 249 euro !

[skidje]

weet niet of dit iets vergelijkbaars is. Maar als men (Jeroen) stelt dat er niets beter te krijgen is begint er iets te kriebelen bij mij.

Wou onderstaande begin volgend jaar aanschaffen en eens uitproberen. Moet tegen die tijd ook werken op 2 brandstoffen.. Zie onderstaande eerste indruk.



Specifications
These specifications are for the advance EMU combinations. This means that not all may be applicable to the
standard and intermediate EMU. See the Introduction different models for variation.
Inputs
2x Magnetic inputs or 2x Hall or Optic inputs or combination of the 2 Groups
1x Map sensor input 0 – 5V
1x Water Temperature Input – 2K NTC Resistance Sensor
1x Air Temperature Input – 2K NTC Resistance Sensor
1x Lambda Input 0 – 1.2 V
1x Spare Input – Program Dependant
1x General Input – Selectable for Tuning Pot, Launch Button or Battery Voltage Correction

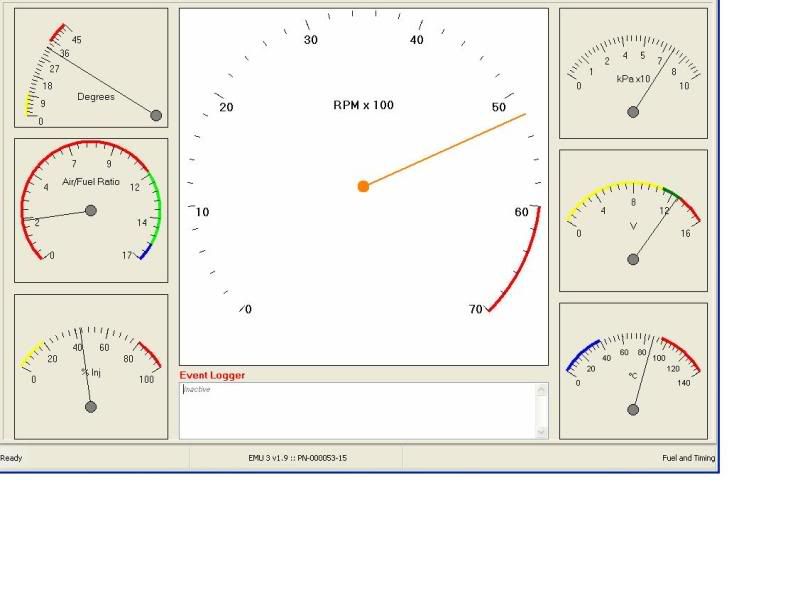

Software RS232 Connection
Programmer Connection
Outputs
6x 7A current Outputs to Ground (coil + injector drivers)
1x Fuel Relay Output 0.75A to Ground
1x RPM Output 0.75A to Ground
2x General Purpose Outputs 0.75A to Ground
5V Output for TPS & Map Sensor and Magnetic Pickups
Crank & Cam Angle Sensors
The EMU can sense any crank or cam sensors. Popular types are 60-2, 36-1, 36-2, Nissan Optic, Toyota 24+TDC,
Rotary, Spitronics Optic and lots more. These are program specific, and are combined with the type of EMU
firmware loaded by the Agent. Some sensors may not be incorporated in programs before but can be done on
request. A fee may be charged for customized software by the Hour. Note that Magnetic and Hall or Optic sensors
have different input connection and thus different harnesses. No difference in the software is necessary.
Load Sites
Dynamic Timing Map – 100 RPM divisions – 1° intervals 0 to 45°BTDC
Vacuum Timing Map – 32 intervals through Map Sensor Range – 1° intervals -10 to +10°
Fuel Vacuum Map – 64 intervals through Map Sensor Range – 1% intervals -50% to +50% Correction
Fuel RPM Map – 3 Maps – 32 intervals through RPM Range – 1% intervals -50% to +50% Correction
Water Temperature Correction Map – 24 intervals 0 to 120°C – 1% intervals -60% to +60% Correction
Air Temperature Correction Map – 24 intervals -20 to 100°C – 1% intervals -50% to +50% Correction
Battery Voltage Correction Map – 16 intervals 8 to 16V – 1% intervals -50% to +50% Correction
